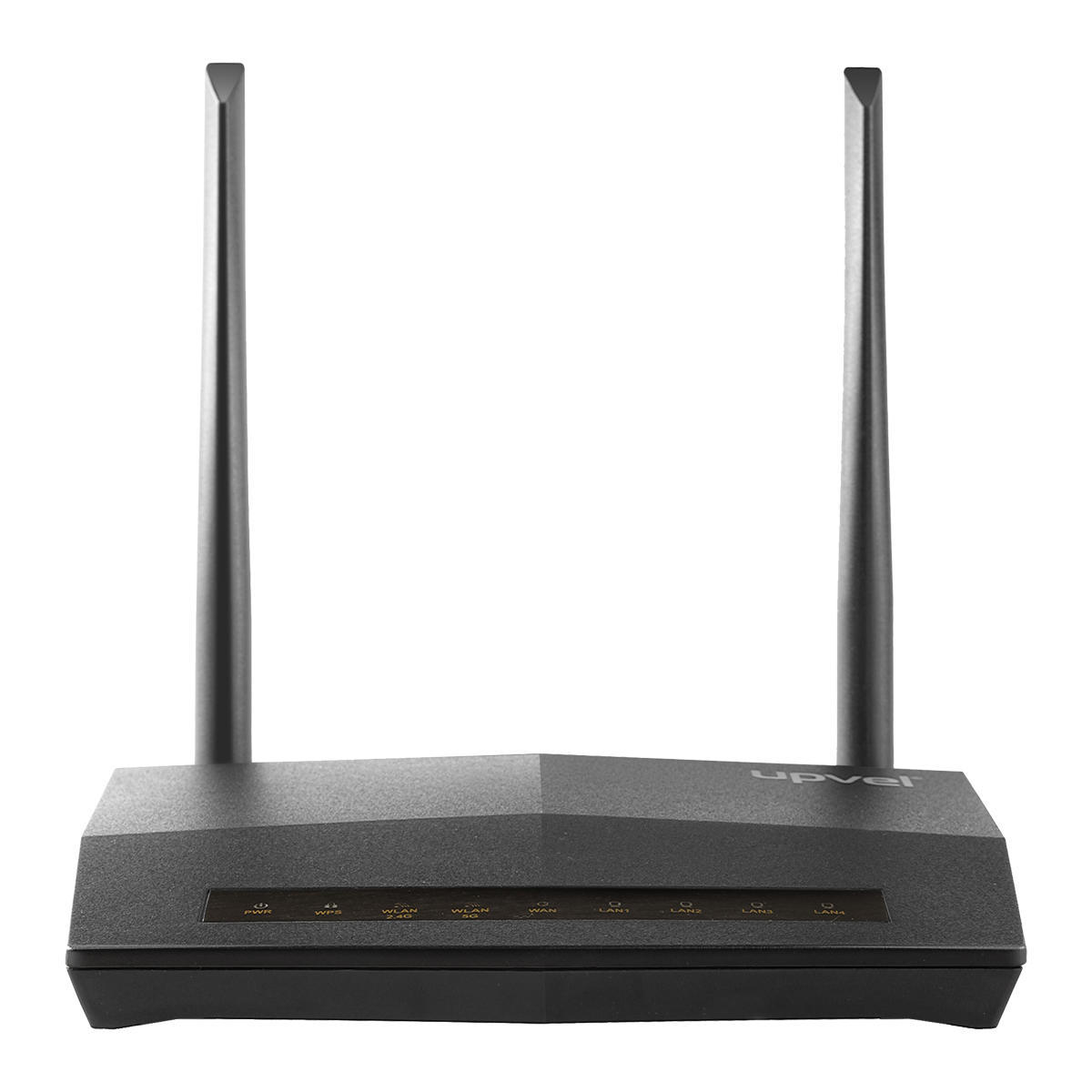

UPVEL UR 814AC Dual-band 4G / LTE 802.11AC 1200 MESH Mbps Wi-Fi Router

Wi-Fi data transfer rate – up to 1200 Mbps | Wi-Fi in dual bands: 2.4 and 5 GHz | Mesh technology | Provides Internet access via Ethernet or 3G / 4G / LTE modem for multiple computers simultaneously | Compatible with the vast majority of ISPs using dynamic / static IP, PPPoE, PPTP and L2TP and Russian versions of these protocols with dual access | Two powerful 5dBi antennas |
Brand
Availability In stock
EMI *Terms and Conditions Apply
Vendor: Upvel Dot BD
BDT 2,999
decrease increase

Description

Dual-band Wi-Fi router UPVEL UR-814AC of 802.11ac 1200 Mbit / s standard is designed to integrate computers, laptops, game consoles and other digital devices into a high-speed network. Internet connection is possible both via Ethernet cable and 3G / 4G / LTE modem. The router creates two simultaneously operating Wi-Fi networks: a high-speed AC 433 Mbit / s network in the 5 GHz band for broadcasting HD video and for other speed-demanding applications and a 300 Mbit / s N 2.4 GHz network for normal Internet activity …

If you only use a wired WAN connection to access the Internet, you can connect an external storage device (HDD, SSD, Flash) or a printer to the USB port and share it.

The latest firmware versions support Yandex.DNS. This option (disabled by default) will help protect your home network from inappropriate content and malicious sites. Flexible configuration allows you to create different degrees of protection for different devices connected to the same router. Provides reliable protection of transmitted data and allows you to quickly connect client devices to a Wi-Fi network thanks to support for Wireless Protected Setup (WPS) technology.

Simple connection setup using the supplied utility, as well as the widest configuration options through the Russian-language Web interface.

Products specifications

Additional information

Wi-Fi standard

802.11a / b / g / n / ac

frequency range

2.4 / 5 GHz

MIMO support

Yes

Maximum wireless speed [Mbps]

750

RAM size [MB]

128

Flash memory capacity [MB]

sixteen

Router

Yes

DHCP server

Yes

Firewall

Yes

NAT

Yes

SPI

Yes

Dynamic DNS support

Yes

Demilitarized Zone (DMZ)

Yes

Web interface

Yes

Telnet support

Yes

SNMP support

no

Possibility of connecting a 3G modem

Yes

Possibility of connecting an LTE modem

Yes

IEEE 802.1q (VLAN) support

Yes

Width [mm]

177

Height [mm]

35

Depth [mm]

135

Weight [g]

260

Number of external antennas

2

External antenna gain [dBi]

five

Internal antenna gain [dBi]

2

Number of switch ports

4

Port speed

100 Mbps

WDS

Yes

Bridge mode

Yes

Repeater mode (repeater)

Yes

Downloading files

Yes

File server

Yes

FTP server

Yes

Web server

no

UPnP AV Server

Yes

Connecting a web camera

no

Guest network

Yes

Number of USB 2.0 Type A connectors

1

Number of USB 3.0 Type A connectors

0

IPv6 support

Yes

VPN support (VPN pass through)

Yes

VPN Tunnel Support (VPN Endpoint)

no

PPTP

Yes

L2TP support

Yes

IPSec support

no

Static routing

Yes

IGMP v1 support

Yes

IGMP v2 support

Yes

IGMP v3 support

Yes

RIP v1 support

Yes

RIP v2 support

Yes

WEP data encryption method

Yes

WPA data encryption method

Yes

WPA2 data encryption method

Yes

802.1x support

Yes

Transmitter power [dBM]

12

Indoor range [m]

100

Outdoor range [m]

300

Food

12V, 1.5A

Indicators

Power, WPS, WLAN 2.4G, WLAN 5G, WAN, LAN 1 – 4

Buttons

WPS / Reset, Power ON / OFF switch

Permissible ambient temperature during operation

0 – 40 Β° C

Storage temperature

-10 – 70 Β° C

Permissible air humidity

10 – 95% (non-condensing)

Contents of delivery

Wi-Fi router;
Power Supply;
Category 5 UTP cable;
Connection and setup instructions;
Warranty card

Certificates

CE, FCC, EAC
