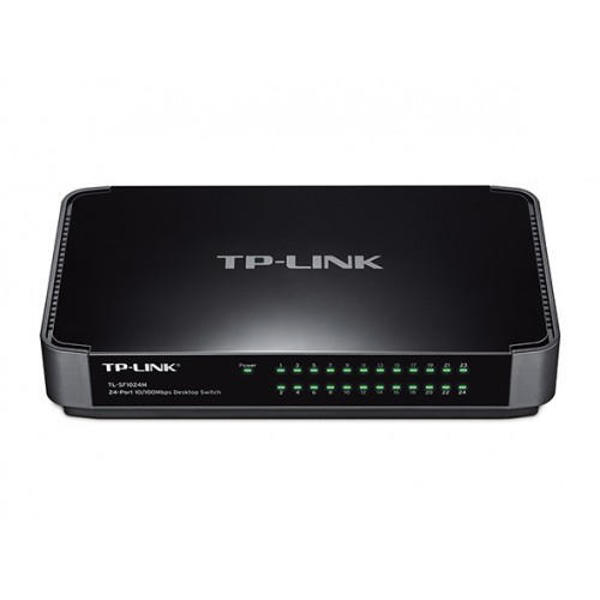

TL-SF1024M 24-Port 10/100Mbps Desktop Switch – Black
High Performance: TL-SF1024M Fast Ethernet Switch provides 24 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1024M forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024M work reliably.
Easy to Use:The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
TP-LINK Green Technology:This new generation TL-SF1024M Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials.
Easy to Use:The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications:
HARDWARE FEATURES |
Interface | 24 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX |
Fan Quantity | Fanless |
External Power Supply | External Power Adapter (Output: 9VDC / 0.6A) |
Mac Address Table | 8K |
Dimensions ( W x D x H ) | 8.7 x 5.0 x 1.8 in. ( 222 x 126 x 45 mm) |
Max Power Consumption | 3.36W(220V/50Hz) |
Max Heat Dissipation | 11.46BTU/h |
SOFTWARE FEATURES |
Transfer Method | Store and Forward |
Advanced Functions | Green Technology, saving power up to 67%
802.3X Flow Control, Back Pressure |
OTHERS |
Certification | FCC, CE, RoHs |
Package Contents | 24-Port 10/100Mbps Desktop Switch TL-SF1024M
Power Adapter
Installation Guide |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing |
Warranty Information:
1 Year International Manufacturer Warranty
